Mechanical and Electrical Design
Custom Part Design
Through the use of 2D and 3D computer-aided design software, our mechanical and electrical designers are able to virtually and thoroughly build out each design - from individual parts to entire machines or systems - complete with fasteners and sensors.
FEA and Simulations
Finite-element analysis and motion studies ensure that our designs are well-built and efficient, and that power components are sized correctly. Our preventative studies mitigate premature failure in parts and increase the life of equipment.
Manufacturing Drawings
We provide complete drawing sets for fabrication, installation, and layout procedures. Each drawing is cross-checked by multiple team members and approved before it is sent out.

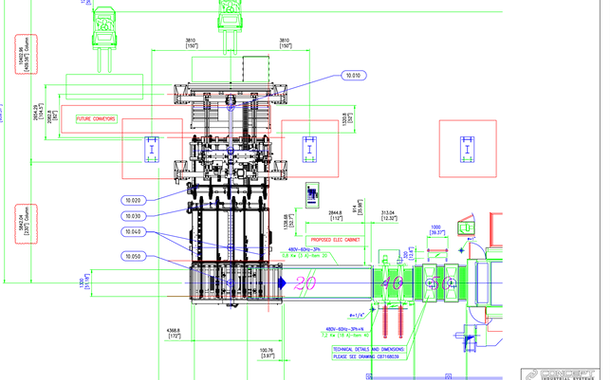

Layouts
From plant GA's to single production lines, Concept has experience with AutoCAD layouts for whatever your project needs.
